VIVO S10 L
A new keyboard concept

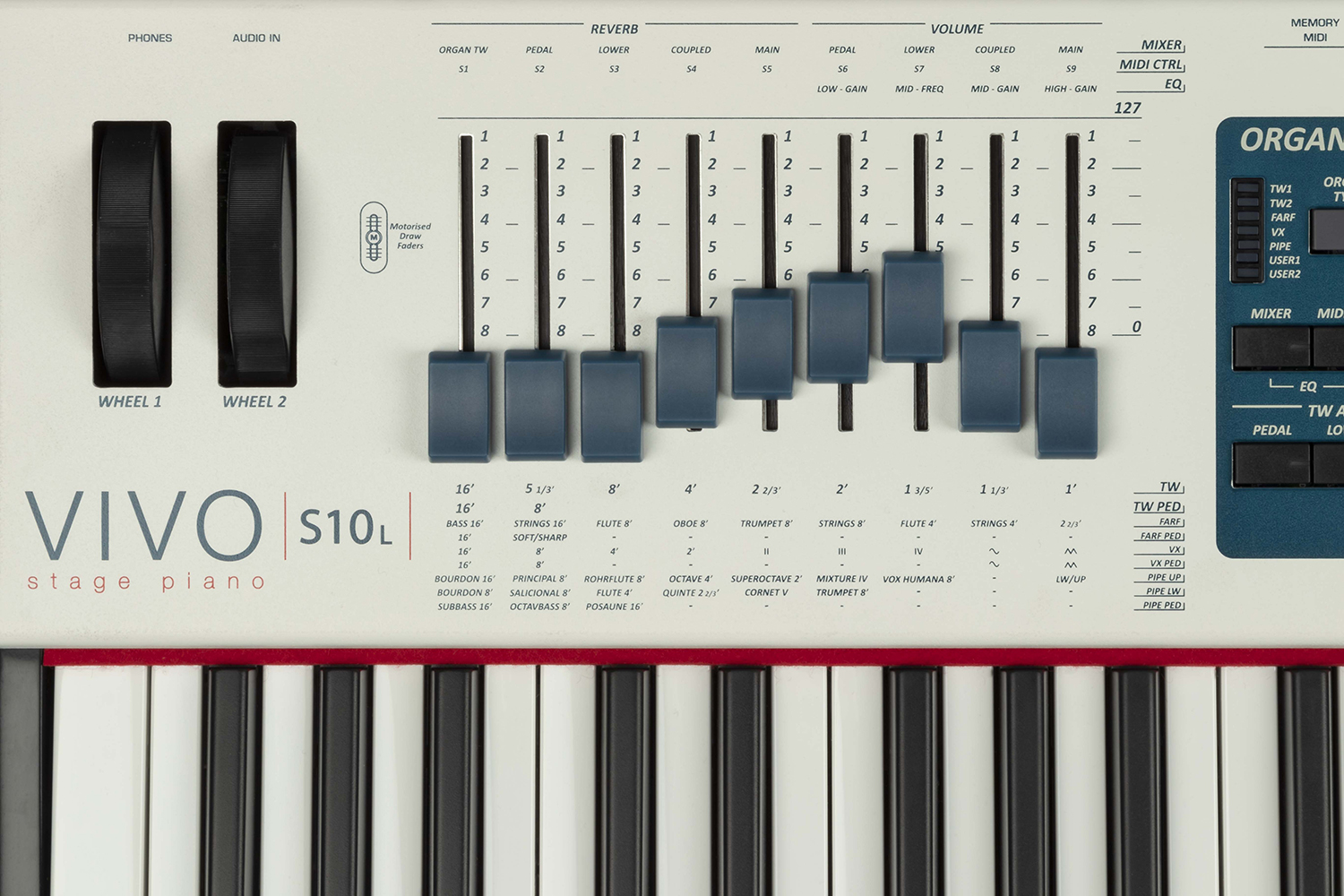

MOTORIZED DRAW-FADER

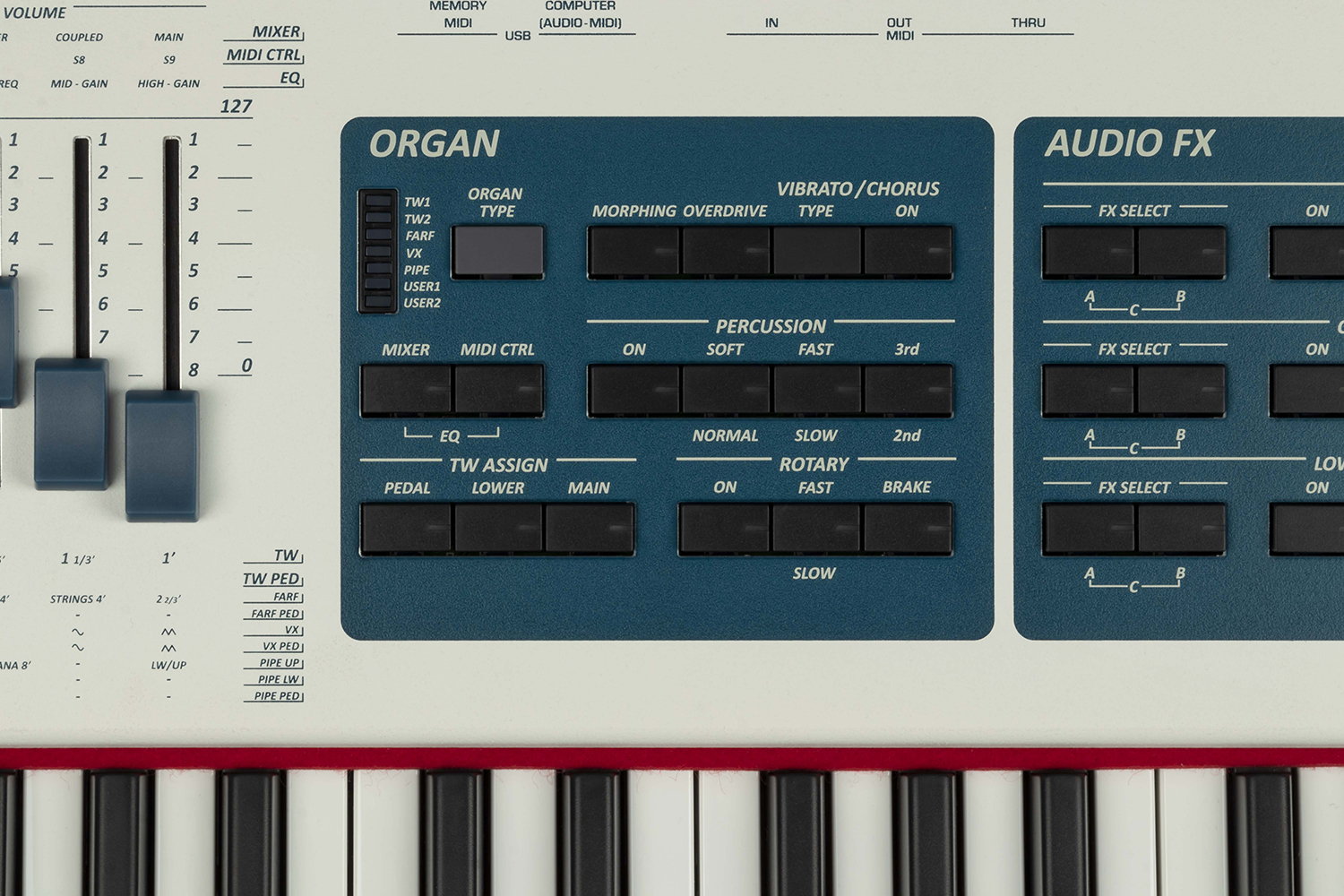

9 multifunctional motorized drawbars-faders for total real-time control

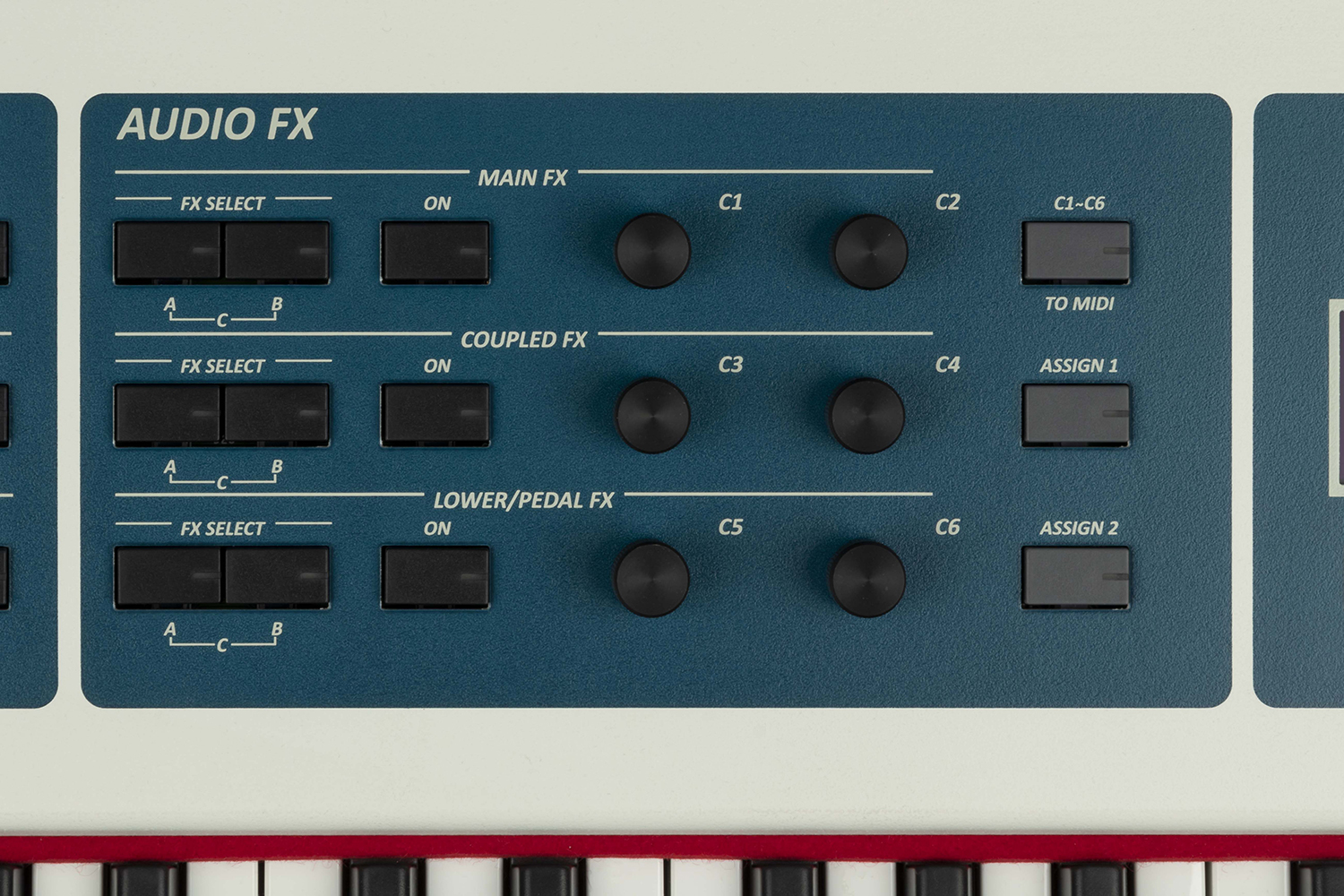

INDIPENDENT DSP
12 independent DSP effects, and 4 independently programmable outputs
POWER AND LIGHTNESS

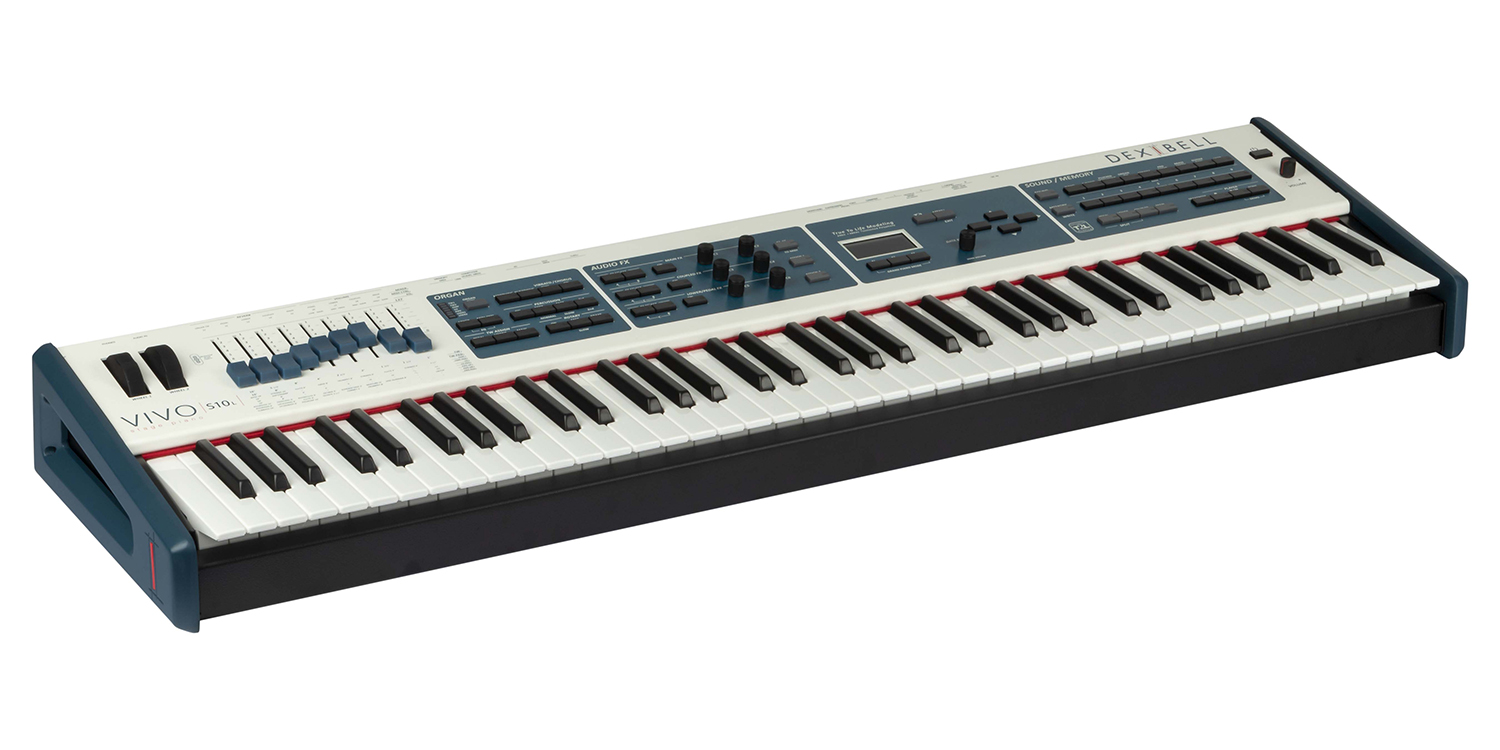

The VIVO S10L delivers the same performance as the VIVO S10 but weighs just 12 kg, thanks to its lightweight 76-note keyboard

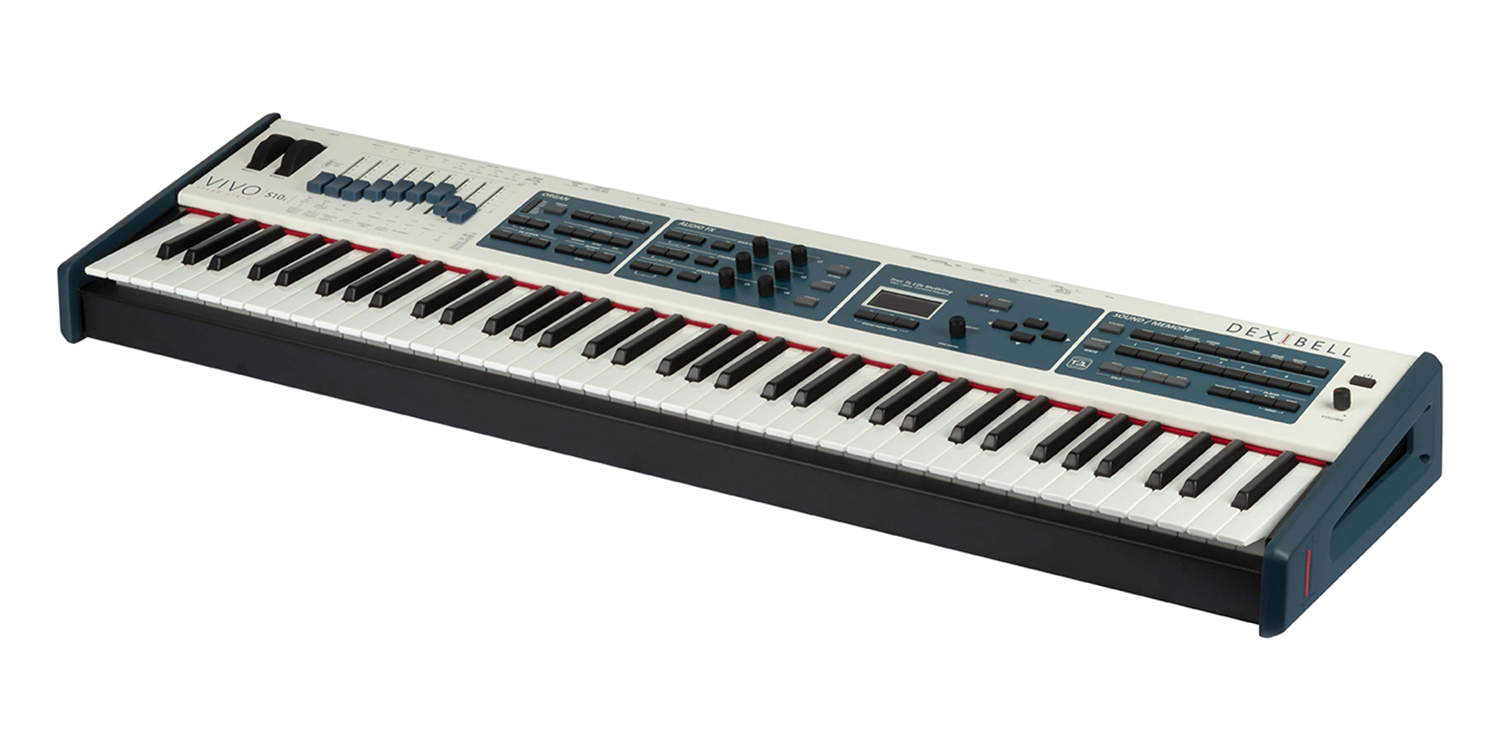

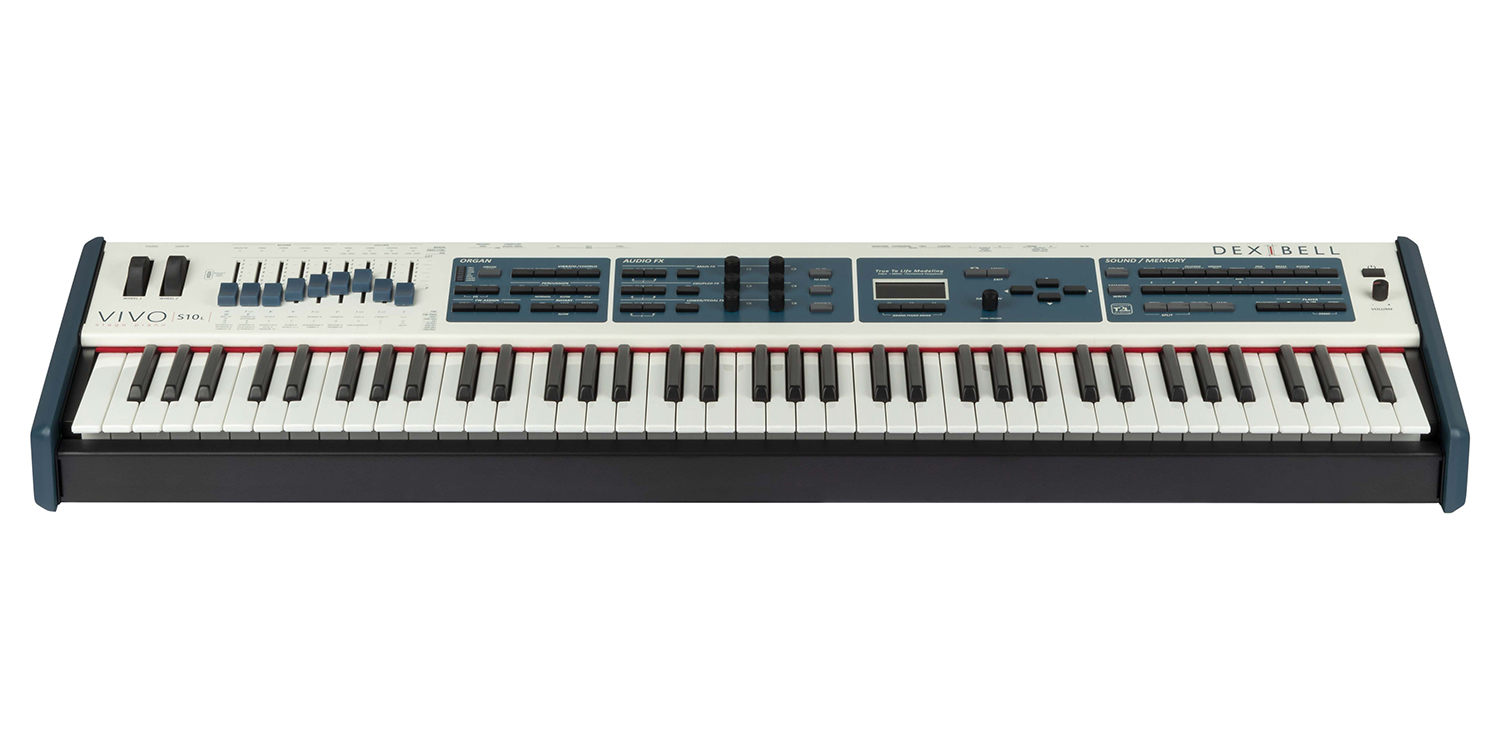

VIVO S10 L

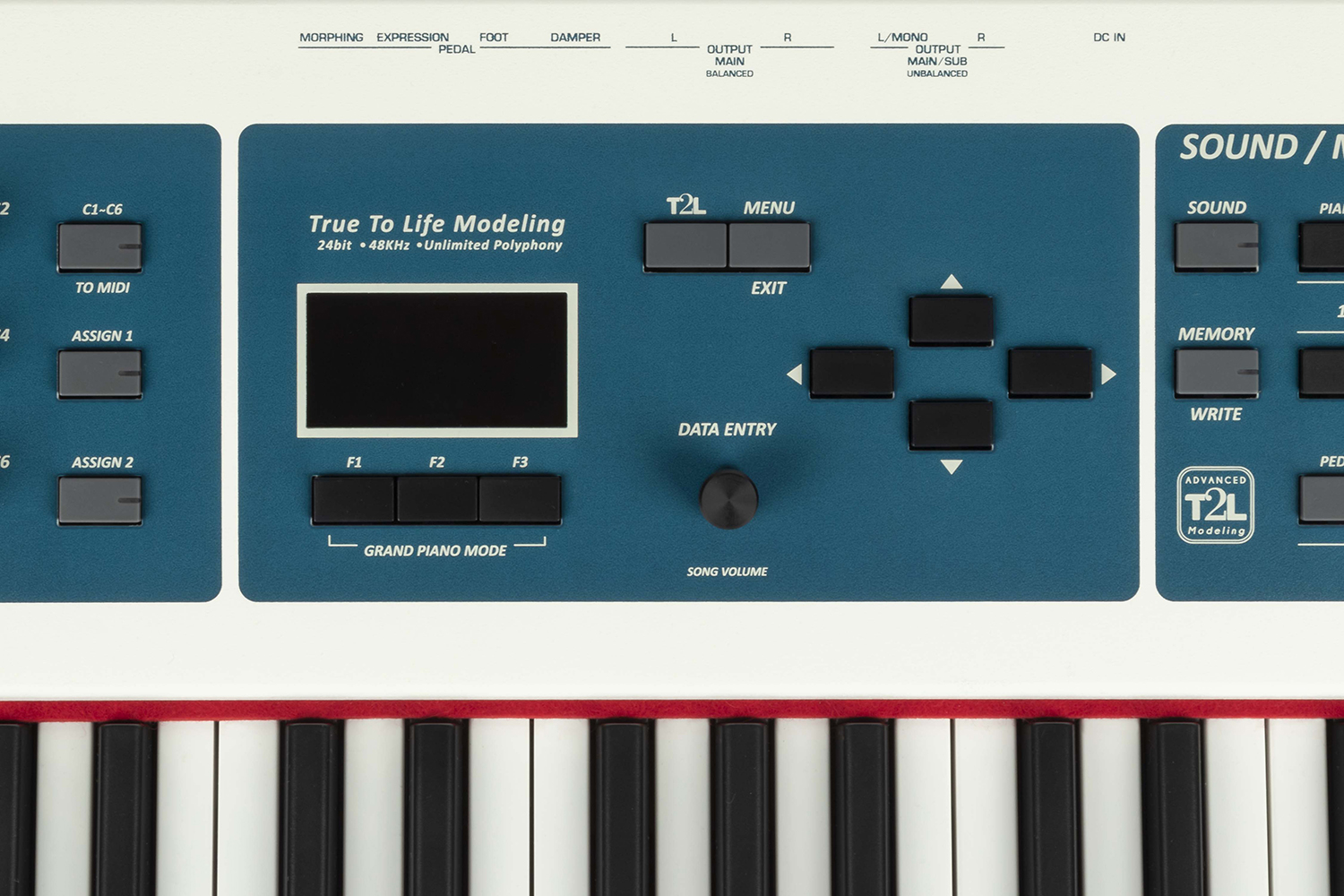

The new VIVO S10L, thanks to the proprietary True to Life technology, now enhanced as ‘Advanced T2L,’ provides musicians with the most advanced performance in the stage piano category.
The lightweight 76-note keyboard allows those who don’t need the weighted 88-note to enjoy all the performance features of the VIVO S10, including the motorized drawbars-faders, with just 12 kg of weight.
The VIVO S10 shares the following key features with the other new models VIVO S10L-S8M-S8-S4-SX8:
– New quad-core processor with 3.2 GB of memory
– 180 sounds featuring a selection of the legendary PLATINUM one
– over 100 organ presets
– Unlimited 24-bit/48 kHz polyphony
– 12 independent DSP effects, and independently programmable outputs that can be used individually to route each part
In addition the Bluetooth functionality for MIDI and audio enables convenient wireless control of programs and parameters via an iOS device using the VIVO Editor app. Moreover, the XMURE App offers the ability to play supported along with numerous audio accompaniment styles.
ACCESSORIES INCLUDED: plexiglass music rest DX MSK and continuous pedal DX CP1
-
Technical specifications
Keyboard76 Keys (Synthesizer type) with dynamicTone GeneratorAdvanced T2L: Sampling and Modelling TechnologySamplingXXL wave size, up to 15 seconds on lower piano notesSound Wave Format24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)Digital Analog Convertion (DAC)24 bit linear - 48 KHz, Dynamic Range, S/N:106dBMaximum PolyphonyUnlimited with 320 OscillatorOrgan TypeTW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteSoundsover 100 Organ Preset + 180 Sounds + User downloadable from websiteDraw-Faders9 MOTORIZED for Tone Wheels/Mixer/EQ/Master Keyboard ControllersMemoryInternal: 81 Unlimited loadable from USB MemoryWave Memory3.2 GB fully changable by the user with DEXIBELL and Sound Font formatKeyboard Mode4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesTouch Sensitivity7 Types + FixedReverb24 TypesEffectsRotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallMaster Equalizer3-band Digital EqualizerChord EnhancerYESControllersFX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2Players.wav, .aiff, .mp3, in all format, frequency and bit rateRecorder.wav (48 kHz, 32-bit floating) on USB MemoryMaster Tuning415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)Temperament9 TypesUser TemperamentYES: 3 UserRhythm PatternsX MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsConnectorsOUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable

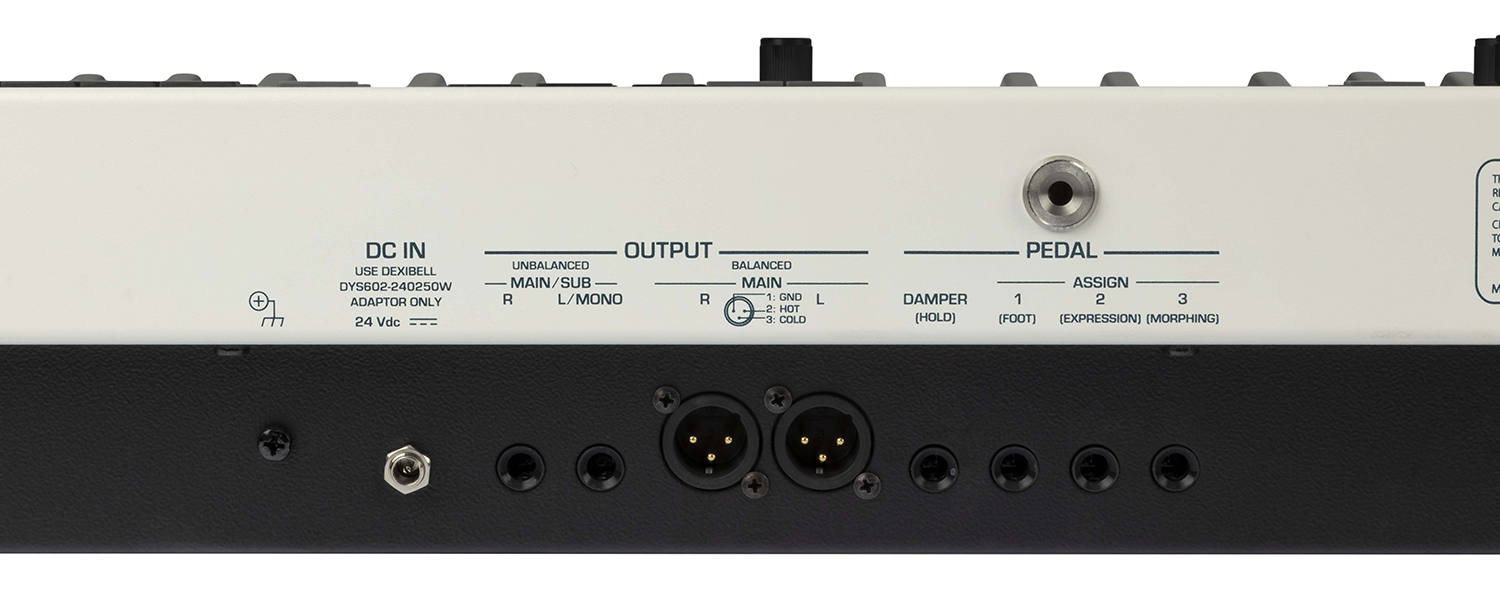

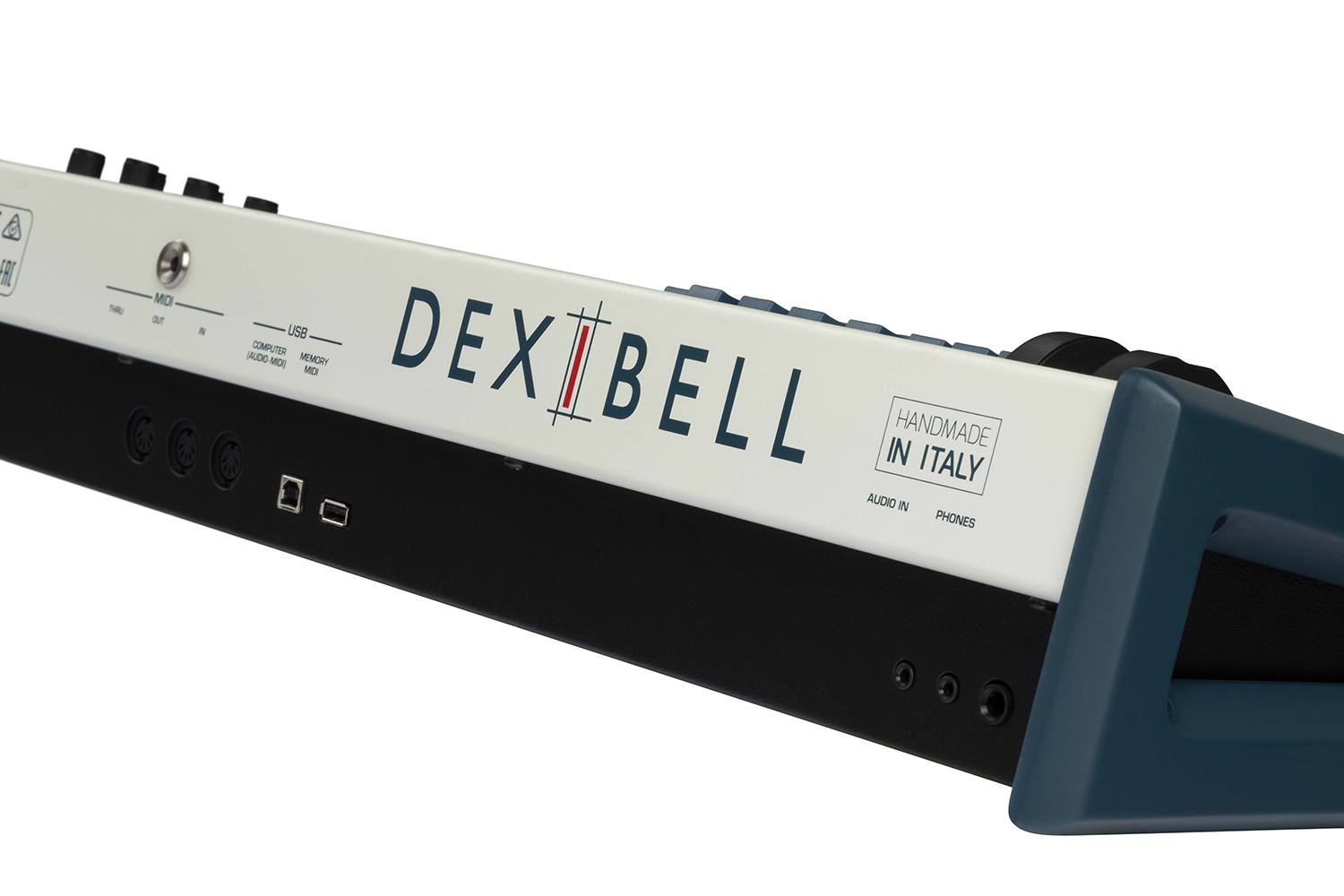

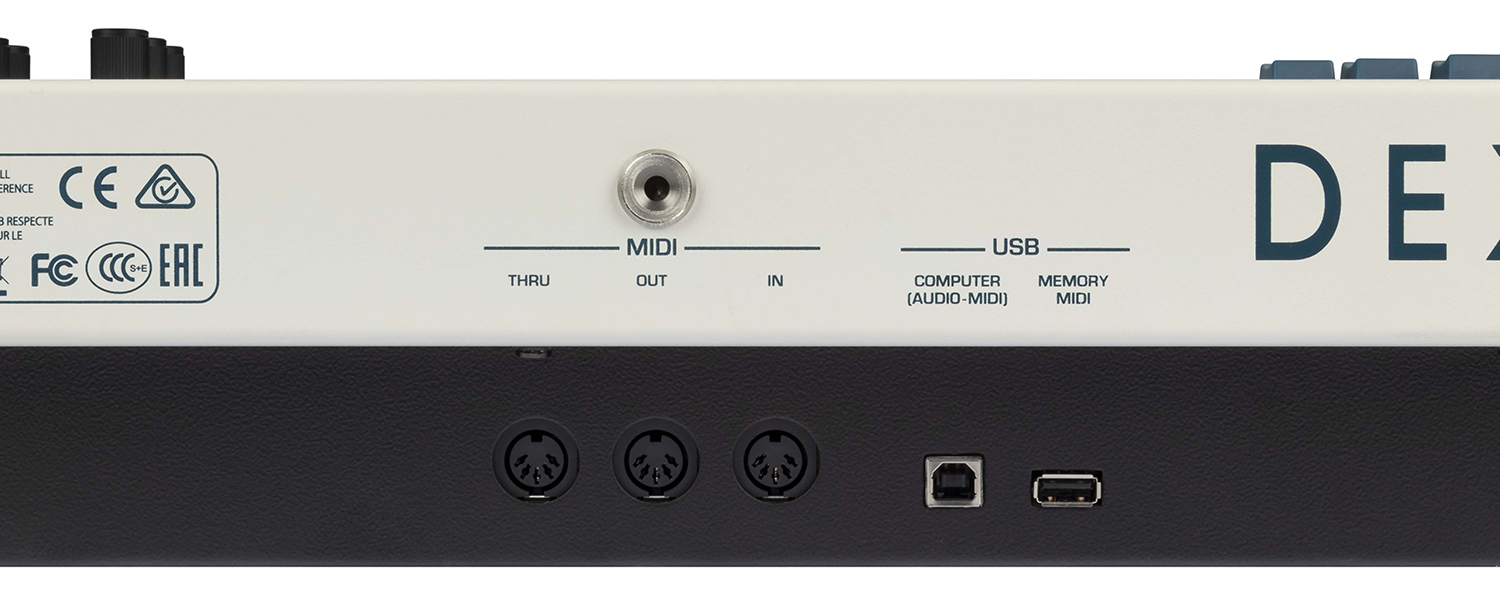

MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)BluetoothStreaming Audio Input, MIDI BLE 4.2DisplayGraphic LCD 128 x 64 dots Organic LED, high contrast typePower ConsumptionSTAND BY: < 0,2 W
MAXIMUM: 18 W
"ErP" LEVEL VI for Echo efficiency on stand-by consumptionDimensionsWidth 1128 mm - 44,4" Depth 328 mm - 12,9" Height 121 mm - 4,7"Weight12 kg - 26,4 lbAccessoriesDamper Pedal and Music Stand included -
Comparison
Select product to compare with VIVO S10 LVIVO S10 LVIVO S10KeyboardVIVO S10 L - 76 Keys (Synthesizer type) with dynamicVIVO S10 - TP-400 W (Hybrid: Wood & Plastic): 88 Keys - Weighted, Hammer action,Triple contact Ivory & Ebony feels After TouchTone GeneratorVIVO S10 L - Advanced T2L: Sampling and Modelling TechnologyVIVO S10 - Advanced T2L: Sampling and Modelling TechnologySamplingVIVO S10 L - XXL wave size, up to 15 seconds on lower piano notesVIVO S10 - XXL wave size, up to 15 seconds on lower piano notesSound Wave FormatVIVO S10 L - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)VIVO S10 - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)Digital Analog Convertion (DAC)VIVO S10 L - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBVIVO S10 - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBMaximum PolyphonyVIVO S10 L - Unlimited with 320 OscillatorVIVO S10 - Unlimited with 320 OscillatorOrgan TypeVIVO S10 L - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteVIVO S10 - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteSoundsVIVO S10 L - over 100 Organ Preset + 180 Sounds + User downloadable from websiteVIVO S10 - over 100 Organ Preset + 180 Sounds + User downloadable from websiteDraw-FadersVIVO S10 L - 9 MOTORIZED for Tone Wheels/Mixer/EQ/Master Keyboard ControllersVIVO S10 - 9 MOTORIZED for Tone Wheels/Mixer/EQ/Master Keyboard ControllersMemoryVIVO S10 L - Internal: 81 Unlimited loadable from USB MemoryVIVO S10 - Internal: 81 Unlimited loadable from USB MemoryWave MemoryVIVO S10 L - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatVIVO S10 - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatKeyboard ModeVIVO S10 L - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesVIVO S10 - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesTouch SensitivityVIVO S10 L - 7 Types + FixedVIVO S10 - 7 Types + FixedReverbVIVO S10 L - 24 TypesVIVO S10 - 24 TypesEffectsVIVO S10 L - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallVIVO S10 - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallMaster EqualizerVIVO S10 L - 3-band Digital EqualizerVIVO S10 - 3-band Digital EqualizerChord EnhancerVIVO S10 L - YESVIVO S10 - YESControllersVIVO S10 L - FX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2VIVO S10 - Draw-faders (Organ TW, S1~S9 Reverb and Volume) FX Encoder x 6 with led meters Data Entry/Song Level Encoder x 1 with led meters Master Volume Knob Wheel 1 & Wheel 2PlayersVIVO S10 L - .wav, .aiff, .mp3, in all format, frequency and bit rateVIVO S10 - .wav, .aiff, .mp3, in all format, frequency and bit rateRecorderVIVO S10 L - .wav (48 kHz, 32-bit floating) on USB MemoryVIVO S10 - .wav (48 kHz, 32-bit floating) on USB MemoryMaster TuningVIVO S10 L - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)VIVO S10 - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)TemperamentVIVO S10 L - 9 TypesVIVO S10 - 9 TypesUser TemperamentVIVO S10 L - YES: 3 UserVIVO S10 - YES: 3 UserRhythm PatternsVIVO S10 L - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsVIVO S10 - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsConnectorsVIVO S10 L - OUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)VIVO S10 - OUTPUT: MAIN Balanced: XLR (L / R) - MAIN/SUB Unbalanced
OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)BluetoothVIVO S10 L - Streaming Audio Input, MIDI BLE 4.2VIVO S10 - Streaming Audio Input, MIDI BLE 4.2DisplayVIVO S10 L - Graphic LCD 128 x 64 dots Organic LED, high contrast typeVIVO S10 - Graphic LCD 128 x 64 dots Organic LED, high contrast typePower ConsumptionVIVO S10 L - STAND BY: < 0,2 W
MAXIMUM: 18 W
"ErP" LEVEL VI for Echo efficiency on stand-by consumptionVIVO S10 - STAND BY: < 0,2 W MAXIMUM: 18 W "ErP" LEVEL VI for Echo efficiency on stand-by consumptionDimensionsVIVO S10 L - Width 1128 mm - 44,4" Depth 328 mm - 12,9" Height 121 mm - 4,7"VIVO S10 - Width 1270 mm - 50" Depth 354 mm - 13,9" Height 130 mm - 5,11"WeightVIVO S10 L - 12 kg - 26,4 lbVIVO S10 - 20 Kg - 44,09 lbAccessoriesVIVO S10 L - Damper Pedal and Music Stand includedVIVO S10 - Damper Pedal and Music Stand includedVIVO S10 LVIVO S8KeyboardVIVO S10 L - 76 Keys (Synthesizer type) with dynamicVIVO S8 - TP-40 Graded: 88 - Keys Hammer action - Triple contact - ivory feelTone GeneratorVIVO S10 L - Advanced T2L: Sampling and Modelling TechnologyVIVO S8 - Advanced T2L: Sampling and Modelling TechnologySamplingVIVO S10 L - XXL wave size, up to 15 seconds on lower piano notesVIVO S8 - XXL wave size, up to 15 seconds on lower piano notesSound Wave FormatVIVO S10 L - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)VIVO S8 - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)Digital Analog Convertion (DAC)VIVO S10 L - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBVIVO S8 - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBMaximum PolyphonyVIVO S10 L - Unlimited with 320 OscillatorVIVO S8 - Unlimited with 320 OscillatorOrgan TypeVIVO S10 L - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteVIVO S8 - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteSoundsVIVO S10 L - over 100 Organ Preset + 180 Sounds + User downloadable from websiteVIVO S8 - over 100 Organ Preset + 180 Sounds + User downloadable from websiteMemoryVIVO S10 L - Internal: 81 Unlimited loadable from USB MemoryVIVO S8 - Internal: 81 Unlimited loadable from USB MemoryWave MemoryVIVO S10 L - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatVIVO S8 - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatKeyboard ModeVIVO S10 L - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesVIVO S8 - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesTouch SensitivityVIVO S10 L - 7 Types + FixedVIVO S8 - 7 Types + FixedReverbVIVO S10 L - 24 TypesVIVO S8 - 24 TypesEffectsVIVO S10 L - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallVIVO S8 - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallMaster EqualizerVIVO S10 L - 3-band Digital EqualizerVIVO S8 - 3-band Digital EqualizerChord EnhancerVIVO S10 L - YESVIVO S8 - YESControllersVIVO S10 L - FX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2VIVO S8 - FX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2PlayersVIVO S10 L - .wav, .aiff, .mp3, in all format, frequency and bit rateVIVO S8 - .wav, .aiff, .mp3, in all format, frequency and bit rateRecorderVIVO S10 L - .wav (48 kHz, 32-bit floating) on USB MemoryVIVO S8 - .wav (48 kHz, 32-bit floating) on USB MemoryMaster TuningVIVO S10 L - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)VIVO S8 - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)TemperamentVIVO S10 L - 9 TypesVIVO S8 - 9 TypesUser TemperamentVIVO S10 L - YES: 3 UserVIVO S8 - YES: 3 UserRhythm PatternsVIVO S10 L - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsVIVO S8 - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsConnectorsVIVO S10 L - OUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)VIVO S8 - OUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced
OUTPUT: Jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)BluetoothVIVO S10 L - Streaming Audio Input, MIDI BLE 4.2VIVO S8 - Streaming Audio Input, MIDI BLE 4.2DisplayVIVO S10 L - Graphic LCD 128 x 64 dots Organic LED, high contrast typeVIVO S8 - Graphic LCD 128 x 64 dots Organic LED, high contrast typePower ConsumptionVIVO S10 L - STAND BY: < 0,2 W
MAXIMUM: 18 W
"ErP" LEVEL VI for Echo efficiency on stand-by consumptionVIVO S8 - STAND BY: < 0,2 W MAXIMUM: 18 W "ErP" LEVEL VI for Echo efficiency on stand-by consumptionDimensionsVIVO S10 L - Width 1128 mm - 44,4" Depth 328 mm - 12,9" Height 121 mm - 4,7"VIVO S8 - Width 1270 mm - 50" Depth 354 mm - 13,9" Height 128 mm - 5,0"WeightVIVO S10 L - 12 kg - 26,4 lbVIVO S8 - 17,9 Kg - 39,4 lbAccessoriesVIVO S10 L - Damper Pedal and Music Stand includedVIVO S8 - Damper Pedal includedDraw-FadersVIVO S10 L - 9 MOTORIZED for Tone Wheels/Mixer/EQ/Master Keyboard ControllersVIVO S8 - -VIVO S10 LVIVO S8MKeyboardVIVO S10 L - 76 Keys (Synthesizer type) with dynamicVIVO S8M - TP-100 LR: 88 - Keys Hammer action - Triple contactTone GeneratorVIVO S10 L - Advanced T2L: Sampling and Modelling TechnologyVIVO S8M - Advanced T2L: Sampling and Modelling TechnologySamplingVIVO S10 L - XXL wave size, up to 15 seconds on lower piano notesVIVO S8M - XXL wave size, up to 15 seconds on lower piano notesSound Wave FormatVIVO S10 L - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)VIVO S8M - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)Digital Analog Convertion (DAC)VIVO S10 L - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBVIVO S8M - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBMaximum PolyphonyVIVO S10 L - Unlimited with 320 OscillatorVIVO S8M - Unlimited with 320 OscillatorOrgan TypeVIVO S10 L - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteVIVO S8M - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteSoundsVIVO S10 L - over 100 Organ Preset + 180 Sounds + User downloadable from websiteVIVO S8M - over 100 Organ Preset + 180 Sounds + User downloadable from websiteMemoryVIVO S10 L - Internal: 81 Unlimited loadable from USB MemoryVIVO S8M - Internal: 81 Unlimited loadable from USB MemoryWave MemoryVIVO S10 L - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatVIVO S8M - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatKeyboard ModeVIVO S10 L - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesVIVO S8M - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesTouch SensitivityVIVO S10 L - 7 Types + FixedVIVO S8M - 7 Types + FixedReverbVIVO S10 L - 24 TypesVIVO S8M - 24 TypesEffectsVIVO S10 L - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallVIVO S8M - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallMaster EqualizerVIVO S10 L - 3-band Digital EqualizerVIVO S8M - 3-band Digital EqualizerChord EnhancerVIVO S10 L - YESVIVO S8M - YESControllersVIVO S10 L - FX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2VIVO S8M - FX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2PlayersVIVO S10 L - .wav, .aiff, .mp3, in all format, frequency and bit rateVIVO S8M - .wav, .aiff, .mp3, in all format, frequency and bit rateRecorderVIVO S10 L - .wav (48 kHz, 32-bit floating) on USB MemoryVIVO S8M - .wav (48 kHz, 32-bit floating) on USB MemoryMaster TuningVIVO S10 L - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)VIVO S8M - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)TemperamentVIVO S10 L - 9 TypesVIVO S8M - 9 TypesUser TemperamentVIVO S10 L - YES: 3 UserVIVO S8M - YES: 3 UserRhythm PatternsVIVO S10 L - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsVIVO S8M - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsConnectorsVIVO S10 L - OUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)VIVO S8M - OUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced OUTPUT Jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)BluetoothVIVO S10 L - Streaming Audio Input, MIDI BLE 4.2VIVO S8M - Streaming Audio Input, MIDI BLE 4.2DisplayVIVO S10 L - Graphic LCD 128 x 64 dots Organic LED, high contrast typeVIVO S8M - Graphic LCD 128 x 64 dots Organic LED, high contrast typePower ConsumptionVIVO S10 L - STAND BY: < 0,2 W
MAXIMUM: 18 W
"ErP" LEVEL VI for Echo efficiency on stand-by consumptionVIVO S8M - STAND BY: < 0,2 W MAXIMUM: 18 W "ErP" LEVEL VI for Echo efficiency on stand-by consumptionDimensionsVIVO S10 L - Width 1128 mm - 44,4" Depth 328 mm - 12,9" Height 121 mm - 4,7"VIVO S8M - Width 1270 mm - 50" Depth 375 mm - 13,9" Height 126 mm -4,9"WeightVIVO S10 L - 12 kg - 26,4 lbVIVO S8M - 15,4 Kg - 33,9 lbAccessoriesVIVO S10 L - Damper Pedal and Music Stand includedVIVO S8M - Damper Pedal includedDraw-FadersVIVO S10 L - 9 MOTORIZED for Tone Wheels/Mixer/EQ/Master Keyboard ControllersVIVO S8M - -VIVO S10 LVIVO S4KeyboardVIVO S10 L - 76 Keys (Synthesizer type) with dynamicVIVO S4 - TP-100 LR: 73 - Keys Hammer action - Triple contactTone GeneratorVIVO S10 L - Advanced T2L: Sampling and Modelling TechnologyVIVO S4 - Advanced T2L: Sampling and Modelling TechnologySamplingVIVO S10 L - XXL wave size, up to 15 seconds on lower piano notesVIVO S4 - XXL wave size, up to 15 seconds on lower piano notesSound Wave FormatVIVO S10 L - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)VIVO S4 - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)Digital Analog Convertion (DAC)VIVO S10 L - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBVIVO S4 - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBMaximum PolyphonyVIVO S10 L - Unlimited with 320 OscillatorVIVO S4 - Unlimited with 320 OscillatorOrgan TypeVIVO S10 L - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteVIVO S4 - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteSoundsVIVO S10 L - over 100 Organ Preset + 180 Sounds + User downloadable from websiteVIVO S4 - over 100 Organ Preset + 180 Sounds + User downloadable from websiteMemoryVIVO S10 L - Internal: 81 Unlimited loadable from USB MemoryVIVO S4 - Internal: 81 Unlimited loadable from USB MemoryWave MemoryVIVO S10 L - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatVIVO S4 - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatKeyboard ModeVIVO S10 L - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesVIVO S4 - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesTouch SensitivityVIVO S10 L - 7 Types + FixedVIVO S4 - 7 Types + FixedReverbVIVO S10 L - 24 TypesVIVO S4 - 24 TypesEffectsVIVO S10 L - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallVIVO S4 - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallMaster EqualizerVIVO S10 L - 3-band Digital EqualizerVIVO S4 - 3-band Digital EqualizerChord EnhancerVIVO S10 L - YESVIVO S4 - YESControllersVIVO S10 L - FX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2VIVO S4 - FX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2PlayersVIVO S10 L - .wav, .aiff, .mp3, in all format, frequency and bit rateVIVO S4 - .wav, .aiff, .mp3, in all format, frequency and bit rateRecorderVIVO S10 L - .wav (48 kHz, 32-bit floating) on USB MemoryVIVO S4 - .wav (48 kHz, 32-bit floating) on USB MemoryMaster TuningVIVO S10 L - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)VIVO S4 - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)TemperamentVIVO S10 L - 9 TypesVIVO S4 - 9 TypesUser TemperamentVIVO S10 L - YES: 3 UserVIVO S4 - YES: 3 UserRhythm PatternsVIVO S10 L - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsVIVO S4 - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsConnectorsVIVO S10 L - OUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)VIVO S4 - OUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)BluetoothVIVO S10 L - Streaming Audio Input, MIDI BLE 4.2VIVO S4 - Streaming Audio Input, MIDI BLE 4.2DisplayVIVO S10 L - Graphic LCD 128 x 64 dots Organic LED, high contrast typeVIVO S4 - Graphic LCD 128 x 64 dots Organic LED, high contrast typePower ConsumptionVIVO S10 L - STAND BY: < 0,2 W
MAXIMUM: 18 W
"ErP" LEVEL VI for Echo efficiency on stand-by consumptionVIVO S4 - STAND BY: < 0,2 W MAXIMUM: 18 W "ErP" LEVEL VI for Echo efficiency on stand-by consumptionDimensionsVIVO S10 L - Width 1128 mm - 44,4" Depth 328 mm - 12,9" Height 121 mm - 4,7"VIVO S4 - Width 1077 mm - 42,4" Depth 370 mm - 14,5" Height 136 mm - 5,3"WeightVIVO S10 L - 12 kg - 26,4 lbVIVO S4 - 11,8 Kg - 26 lbAccessoriesVIVO S10 L - Damper Pedal and Music Stand includedVIVO S4 - Damper Pedal includedDraw-FadersVIVO S10 L - 9 MOTORIZED for Tone Wheels/Mixer/EQ/Master Keyboard ControllersVIVO S4 - -VIVO S10 LVIVO S1KeyboardVIVO S10 L - 76 Keys (Synthesizer type) with dynamicVIVO S1 - TP-8P: 68 - Keys Light Weighted - Dual contactTone GeneratorVIVO S10 L - Advanced T2L: Sampling and Modelling TechnologyVIVO S1 - T2L: Sampling and Modelling TechnologySamplingVIVO S10 L - XXL wave size, up to 15 seconds on lower piano notesVIVO S1 - XXL wave size, up to 15 seconds on lower piano notesSound Wave FormatVIVO S10 L - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)VIVO S1 - 24 bit linear - 48 KHz (Internal processing and DSP at 32 bit floating)Digital Analog Convertion (DAC)VIVO S10 L - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBVIVO S1 - 24 bit linear - 48 KHz, Dynamic Range, S/N:106dBMaximum PolyphonyVIVO S10 L - Unlimited with 320 OscillatorVIVO S1 - Unlimited with 320 OscillatorSoundsVIVO S10 L - over 100 Organ Preset + 180 Sounds + User downloadable from websiteVIVO S1 - 80 + User downloadable from websiteMemoryVIVO S10 L - Internal: 81 Unlimited loadable from USB MemoryVIVO S1 - Internal: 80 User: Unlimited loadable from USB MemoryWave MemoryVIVO S10 L - 3.2 GB fully changable by the user with DEXIBELL and Sound Font formatVIVO S1 - 1.5 GB fully changable by the user with DEXIBELL and Sound Font formatKeyboard ModeVIVO S10 L - 4 Parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zonesVIVO S1 - 3 Parts (MAIN, LOWER, COUPLED) + 4 MIDI zonesTouch SensitivityVIVO S10 L - 7 Types + FixedVIVO S1 - 7 Types + FixedReverbVIVO S10 L - 24 TypesVIVO S1 - 24 TypesEffectsVIVO S10 L - Rotary, Overdrive, Vibrato/Chorus for Organ + 12 Independent DSP x 17 types (3 x Main, 3 x Coupled, 3 x Lower, 3 x Pedal) using "seamless changes" technology at effect recallVIVO S1 - 6 independent DSP Effects x 17 types ( 2 x Main, 2 x Coupled, 2 x Lower) using "seamless changes" technology at effect recallMaster EqualizerVIVO S10 L - 3-band Digital EqualizerVIVO S1 - 3-band Digital EqualizerRecorderVIVO S10 L - .wav (48 kHz, 32-bit floating) on USB MemoryVIVO S1 - .wav (48 kHz, 32-bit floating) on USB MemoryMaster TuningVIVO S10 L - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz)+ 2 Preset (440 Hz, 442 Hz)VIVO S1 - 415,4 Hz to 466,1 Hz (adjustable increments of 0,1 Hz) + 2 Preset (440 Hz, 442 Hz)TemperamentVIVO S10 L - 9 TypesVIVO S1 - 9 TypesUser TemperamentVIVO S10 L - YES: 3 UserVIVO S1 - YES: 3 UserRhythm PatternsVIVO S10 L - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsVIVO S1 - X MURE APP for i-Phone and i-Pad (FREE) with multitracks audio patternsConnectorsVIVO S10 L - OUTPUT: MAIN Balanced: XLR (LR) MAIN / SUB Unbalanced OUTPUT jacks (L/MONO, R) 1/4-inch phone type
FOOT 1: Progressive Damper Action Pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
FOOT 4: Morphing Pedal / Function assignable
MIDI: IN, OUT, THRU
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)VIVO S1 - OUTPUT: OUTPUT jacks (L/MONO, R): 1/4-inch phone type
PHONES: 2: 1 Jack 1/4 -inch phone type, 1 mini jack
FOOT 1: Progressive Damper Action Pedal with sympatetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression Pedal / Function assignable
USB: TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
AUX IN: 1 jack (stereo mini-jack)DisplayVIVO S10 L - Graphic LCD 128 x 64 dots Organic LED, high contrast typeVIVO S1 - Graphic LCD 128 x 64 dots Organic LED, high contrast typePower ConsumptionVIVO S10 L - STAND BY: < 0,2 W
MAXIMUM: 18 W
"ErP" LEVEL VI for Echo efficiency on stand-by consumptionVIVO S1 - STAND BY: < 0,2 W MAXIMUM: 7 W "ErP" LEVEL VI for Echo efficiency on stand-by consumptionDimensionsVIVO S10 L - Width 1128 mm - 44,4" Depth 328 mm - 12,9" Height 121 mm - 4,7"VIVO S1 - Width 1093 mm - 43" Depth 242 mm - 9,5"- Height 94 mm - 3,7"WeightVIVO S10 L - 12 kg - 26,4 lbVIVO S1 - 8,5 Kg - 8,5 lbOrgan TypeVIVO S10 L - TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from websiteVIVO S1 - -Draw-FadersVIVO S10 L - 9 MOTORIZED for Tone Wheels/Mixer/EQ/Master Keyboard ControllersVIVO S1 - -Chord EnhancerVIVO S10 L - YESVIVO S1 - -ControllersVIVO S10 L - FX Encoder x 6 Data Entry/Song Level Encoder x 1 Master Volume Knob Wheel 1 & Wheel 2VIVO S1 - -PlayersVIVO S10 L - .wav, .aiff, .mp3, in all format, frequency and bit rateVIVO S1 - -BluetoothVIVO S10 L - Streaming Audio Input, MIDI BLE 4.2VIVO S1 - -AccessoriesVIVO S10 L - Damper Pedal and Music Stand includedVIVO S1 - - -
